Concepts

Architecture

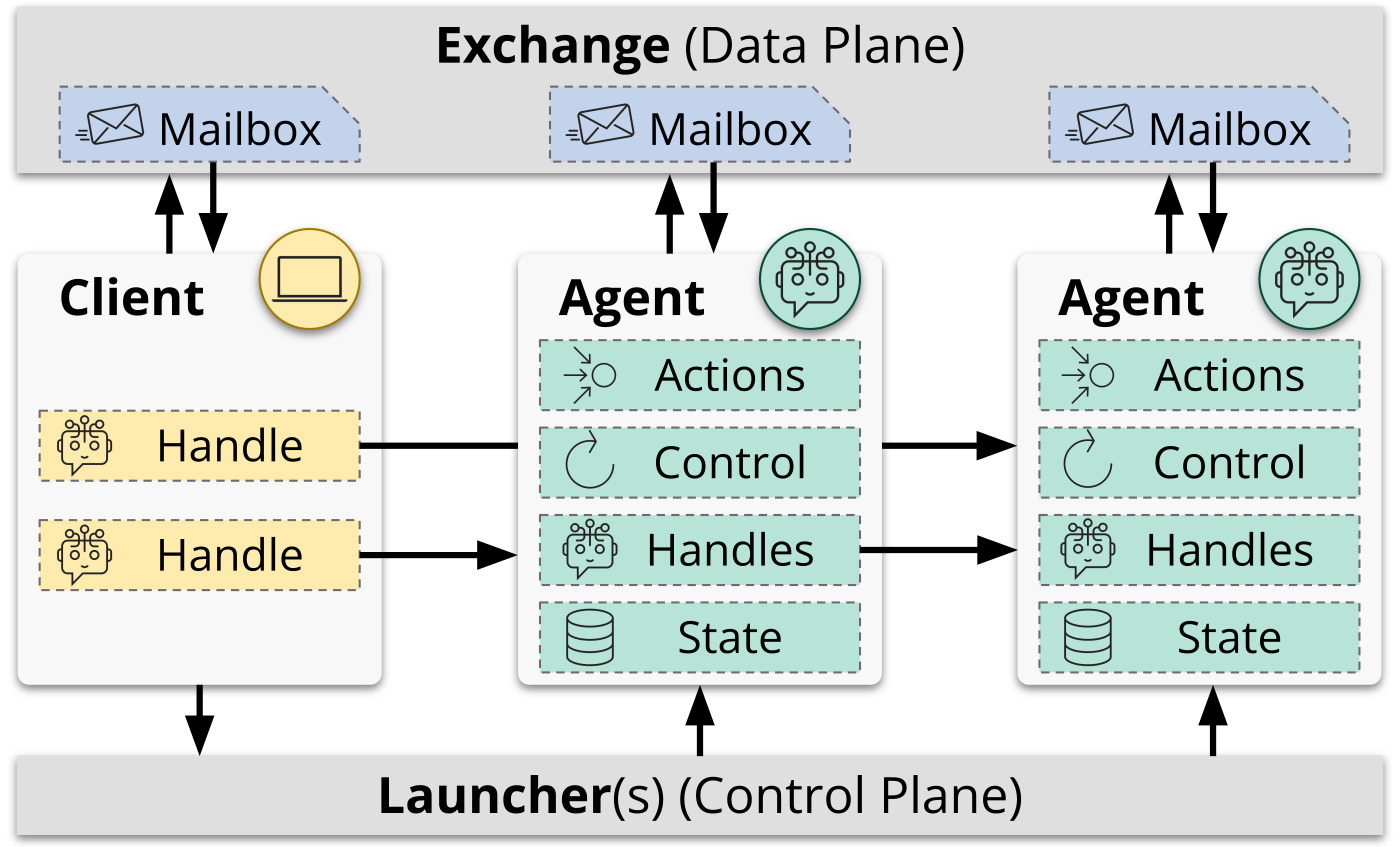

Agents and clients in Academy interact via handles to invoke actions asynchronously. Agents implement a behavior, defined by their actions, control loops, and state. Academy decouples the control and data planes through the launcher and exchange components that manage spawning agents and communication, respectively.

An Academy application includes one or more agents and zero or more clients. An agent is a process that executes a behavior, where a behavior is defined by a local state, a set of actions, and a set of control loops. Agents are executed remotely using a launcher. Once running, an agent concurrently executes all of its control loops and listens for messages from clients, which can be other agents or programs.

A client interacts with an agent through a handle}, which acts like a reference to the remote agent and translates method calls into action request messages. Each entity (i.e., client or agent) has an associated mailbox that maintains a queue of messages sent to that entity by other entities. Mailboxes are maintained by an exchange such that any client with access to a given exchange can send messages to the mailbox of another agent in the exchange and receive a response through its own mailbox.

Agents

In Academy, the concept of an "agent" is intentionally simple. The agent primitive is, at its core, is an entity that:

• Has state: Maintains information about its current situation, past history, or internal variables.
• Performs actions: Execute specific operations or tasks.
• Communicates: Exchanges messages or data with other clients, agents, or the environment.

In essence, Academy agents can be thought of as building blocks for more complex or specialized agent-based systems.

Behaviors

An academy.behavior is implemented as a Python class that inherits from the base Behavior type. This class-based approach is extensible through inheritance and polymorphism.

• State is stored as instance attributes on the agent's behavior type. Instance attributes maintain the agent's state, and methods define the actions and control loops.
• Actions can be performed in two ways: @action decorated methods allow other entities to invoke the method remotely and @loop decorated methods run non-terminating control loops that enable an agent to autonomously perform actions.
• Communication between entities in managed via Handles which are client interfaces to remote agents used to invoke actions, ping, and shutdown.

Execution

The Agent is a multithreaded entity that executes a provided behavior and manages communication with other entities. Agent.run() executed the agent by (1) invokes the on_setup() callback of the behavior, (2) starts each @loop method in a separate thread, (3) spawns a thread to listen for new messages in the agent's mailbox, and (4) waits for the agent to be shut down. Each @action method is executed in a thread pool when requested remotely so as to not block the handling of other messages.

Note

The use of multi-threading means that behavior implementations must be aware of the caveats of Python's global interpreter lock (GIL). Compute-heavy actions can dispatch work to other parallel executors, such as a ProcessPoolExecutor, Dask Distributed, Parsl, or Ray.

Agents are designed to be long-running, but can be terminated by sending a shutdown request. Upon shutdown, the shutdown threading.Event, passed to each @loop, is set; running threads are instructed to shutdown and waited on; and the on_shutdown() callback is invoked. Agents can terminate themselves by setting the shutdown event; exceptions raised in @loop methods will shutdown the agent by default, and exceptions raised when executing @action methods are caught and returned to the remote caller.

Handles

Interacting with an agent is asynchronous; an entity sends a message to the agent's mailbox and waits to receive a response message in its own mailbox. A Handle is a client interface to a remote agent used to invoke actions, ping, and shutdown the agent. Handles translate method calls into a request messages sent via the exchange and returning a Futures. The handle also listens for response messages and accordingly sets the result on the appropriate Futures.

Exchanges and Mailboxes

Entities communicate by sending and receiving messages to and from mailboxes. Mailboxes are managed by an Exchange, and this protocol defines methods for registering new agent or client mailboxes, sending and receiving messages, and creating handles to remote agents. Registering an agent or client involves creating a unique ID for the entity, which is also the address of its mailbox, and initializing that mailbox within the exchange.

A mailbox has two states: open and closed. Open indicates that the entity is accepting messages, even if, for example, an agent has not yet started or is temporarily offline. Closed indicates permanent termination of the entity and will cause MailboxClosedError to be raised by subsequent send or receive operations to that mailbox.

Academy provides many exchange implementations for different scenarios, such as:

• ThreadExchange: Uses thread-safe queues for single-process, multiple-agent scenarios. Useful for testing and development.
• HttpExchange: Centralized service that maintains mailboxes and exposes a REST API. Lower performance but easy to extend with common authentication tools.
• RedisExchange: Stores state and mailboxes in a Redis server. Use of Redis enables optional replication and cloud-hosting for improved resilience and availability.
• HybridExchange: Entities host their mailbox locally and message each other directly over TCP when possible. Redis is used to map mailbox IDs to address and port pairs, and to store messages for offline entities or when two entities cannot directly communicate (such as when behind NATs).

Launcher

An agent can be run manually, but the intended method of execution is via the launcher, which manages the initialization and execution of agents on remote resources. The Launcher defines a launch() method with parameters for the behavior, exchange, and agent ID and returns a handle to the launched agent. It runs agents in any concurrent.futures.Executor compatible executor, such as a ProcessPoolExecutor, Parsl, or Globus Compute.

Managers

A Manager combines an exchange and one or more launchers to provide a single interface for launching, using, and managing agents. Each manager has a single mailbox in the exchange and multiplexes that mailbox across handles to all of the agents that it manages. This reduces boilerplate code, improves communication efficiency, and ensures stateful resources and threads are appropriately cleaned up.
